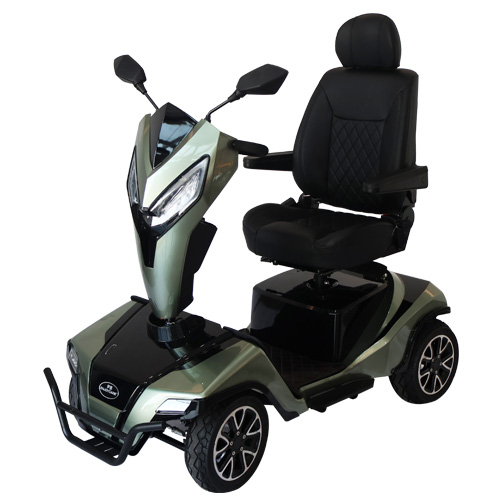

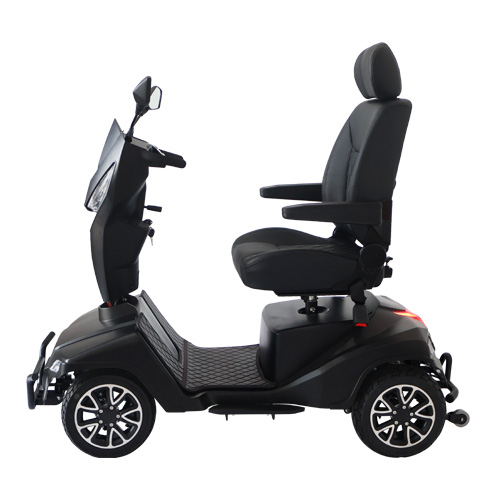

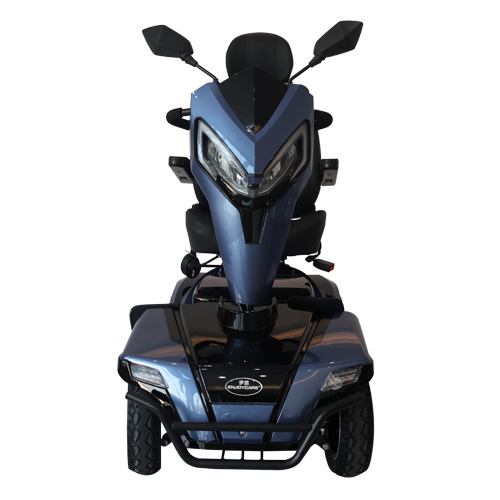

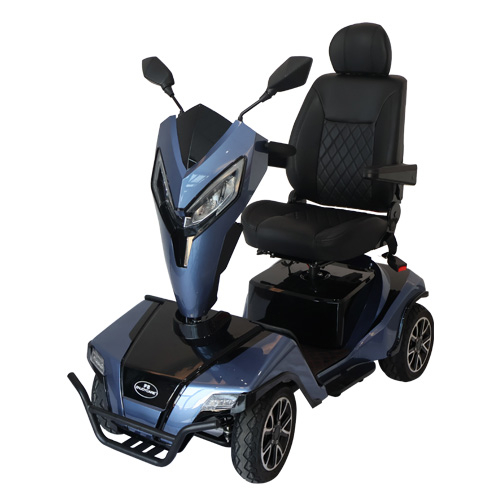

EML49A-D Optimus

Product Introduction
Dimensions1600 x 720 x 1170mm
Ground clearance83mm
Max. forward speed15 km/h  (optional)
Max. backward speed6-8km/h (optional)
Turning radius 1.73m
Braking distance2.5m (brake from max speed)
Range70 Km
Climbing capability ≥10°
Motors24V 1400W( Taiwan MTM)
ControllerPG S200
Battery12V 75Ah x 2 lead acid
Charger24V 8A
Charge time 8-10h Recommended
Front Tyres13inch，100/60-8
Rear Tyres13inch,  115/55-8
Weight Capacity180kg
Gross Weight197kg
Net Weight141kg
Battery Weight 23.5kgx 2
Packing size Body1655*755*880mm
Qty/20'21 PCS
Qty/40'HQ54 PCS

Product Specification
