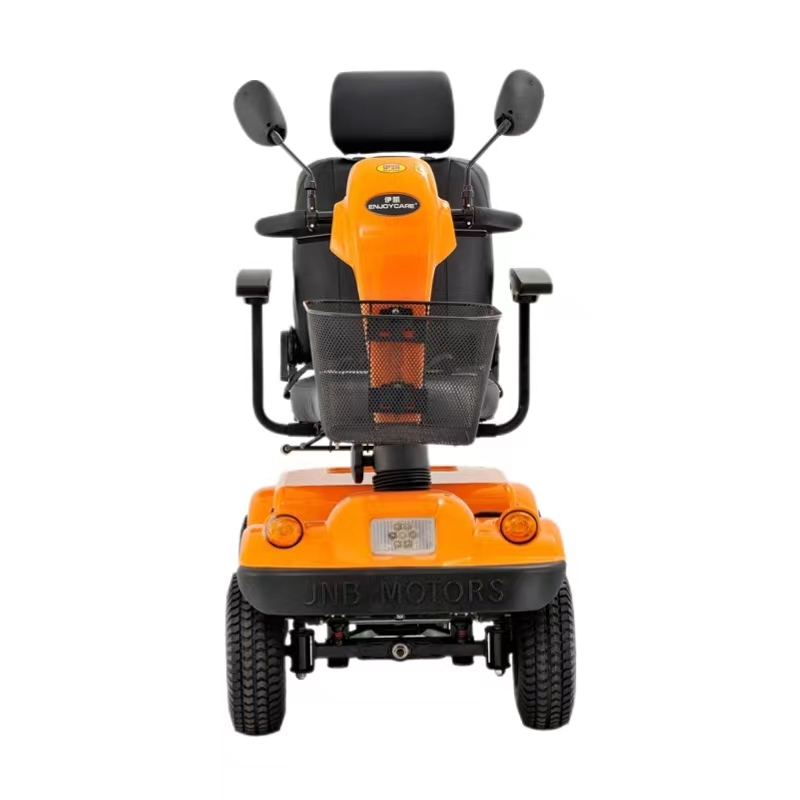

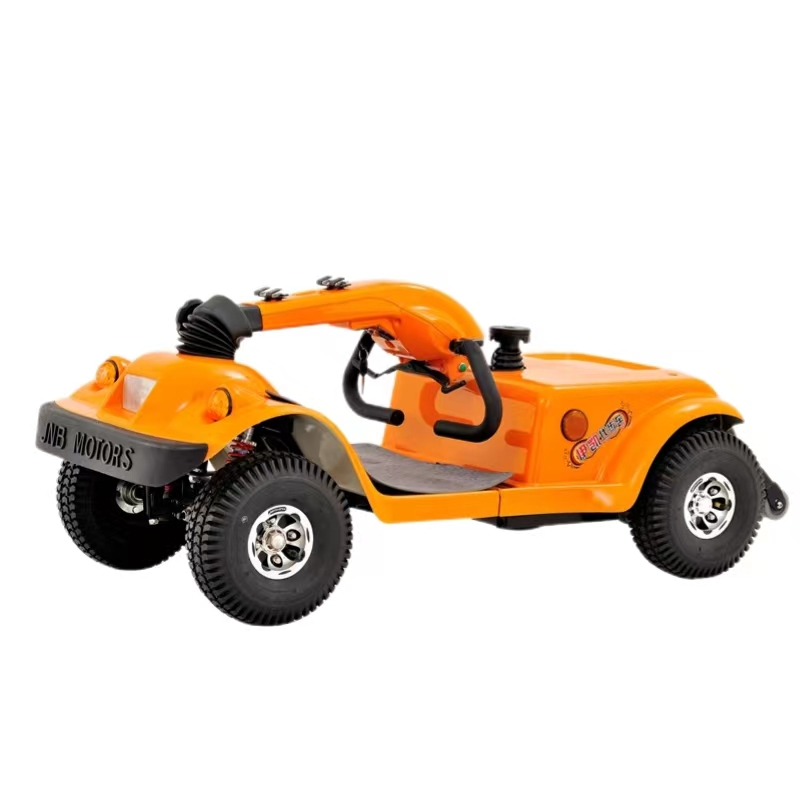

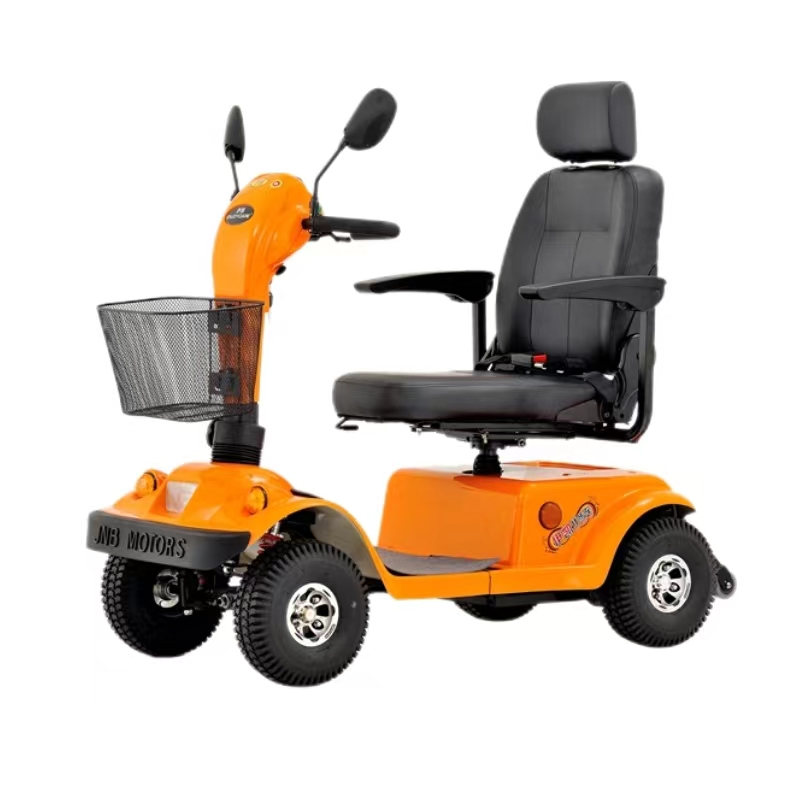

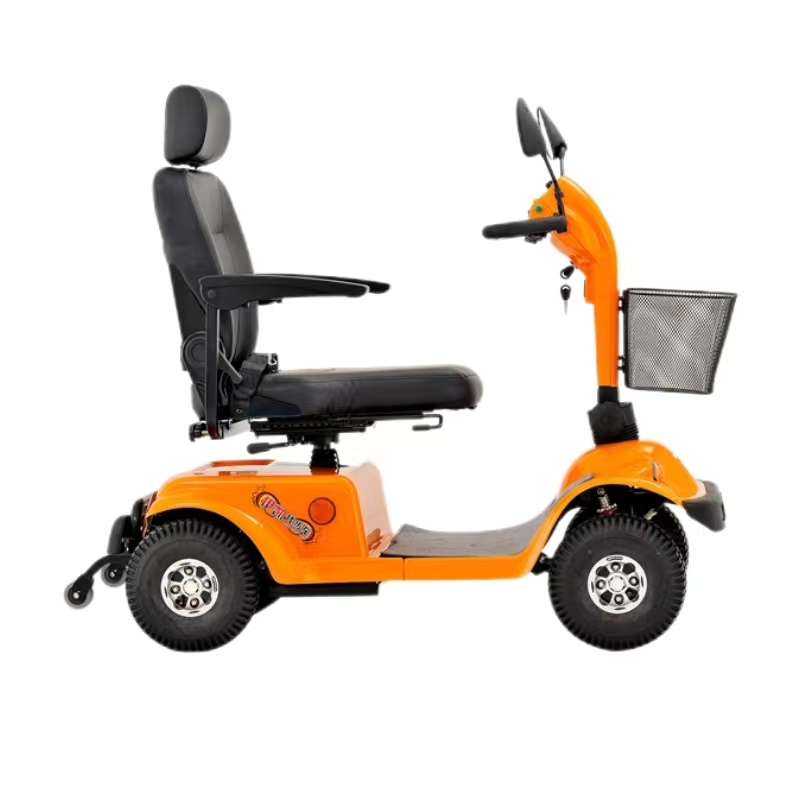

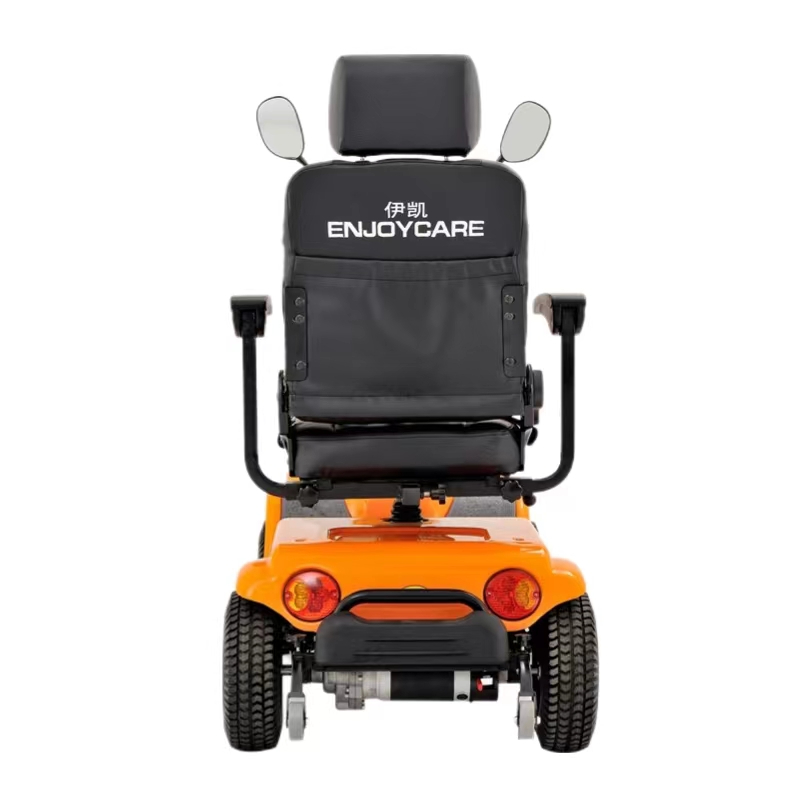

EML46DP / EML46A

Product Introduction
Model EML46AEML46DP
Dimensions 1450 x 660 x 1250mm 1450 x 660 x 1250mm
Ground clearance80mm80mm
Max. forward speed 12.6km/h(adjustable)10km/h(adjustable)
Max. backward speed 2.8km/h(adjustable) 2.8km/h(adjustable)
Turning radius 1.9m 1.9m
Braking distance1.6m1.6m
Range
Climbing capability15°15°
Motors24V 800W (Made in Taiwan) 24V 450W
Controller110A24V 70A
Battery 12V 55AH x 2 lead acid 12V 35AH x 2 lead acid
Charger 24V 6A battery charger 24V5A battery charger
Charge time 6-8h Recommended6-8h Recommended
Front Tyres12"*4.00-410"*3.00-4
Rear Tyres12"*4.00-410"*3.00-4
Weight Capacity170kg 170kg
Gross Weight
Net Weight 105kg 105kg
Battery Weight19kg x 213.8kg x 2
Packing size Body1460 x 710 x 660mm 1460 x710 x660 mm
Qty/20'48 PCS48 PCS
Qty/40'HQ100 PCS100 PCS

Product Specification
